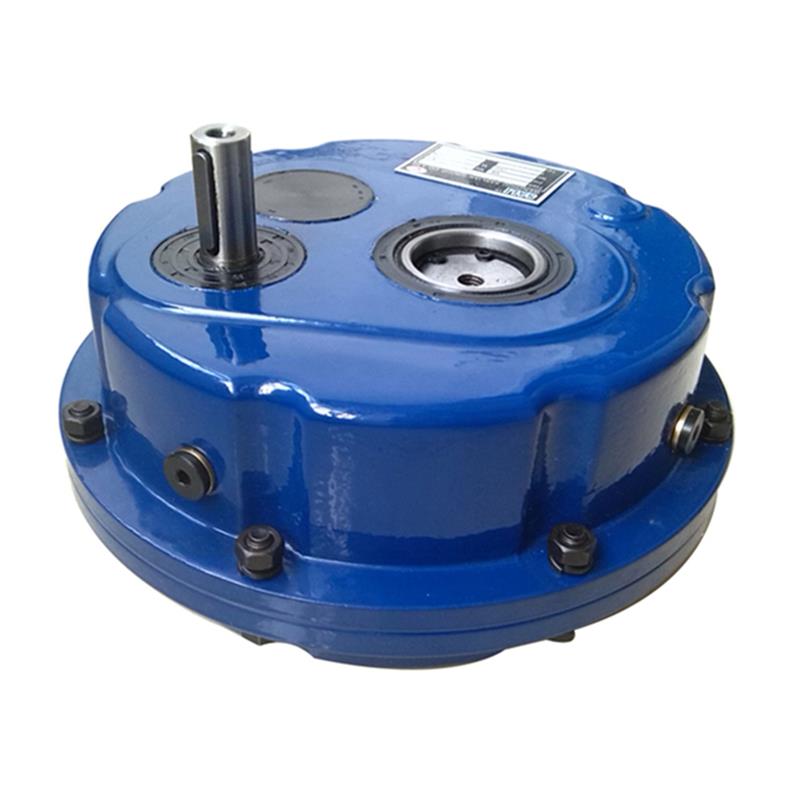

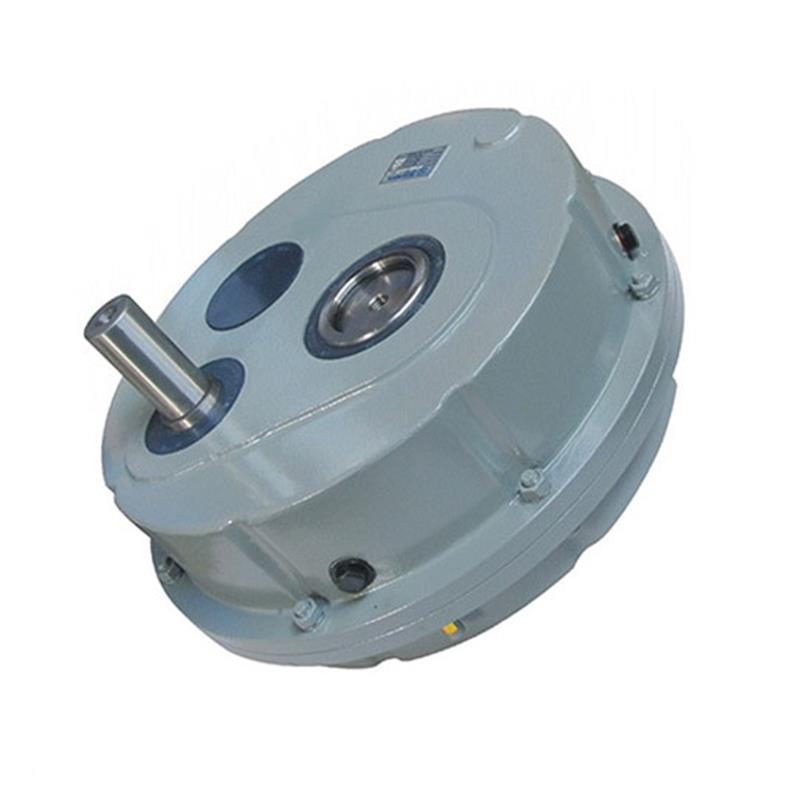

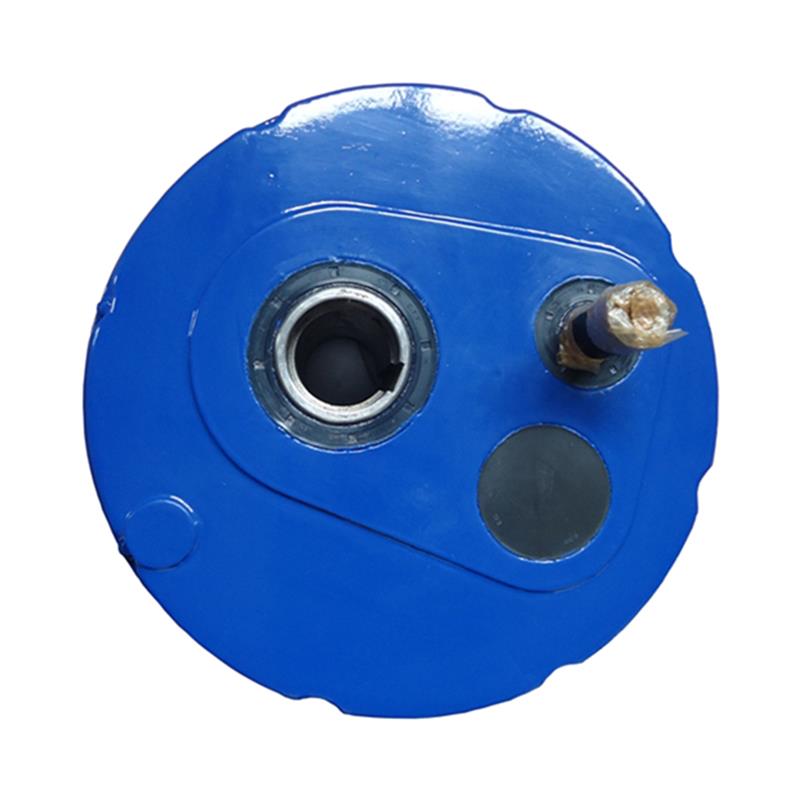

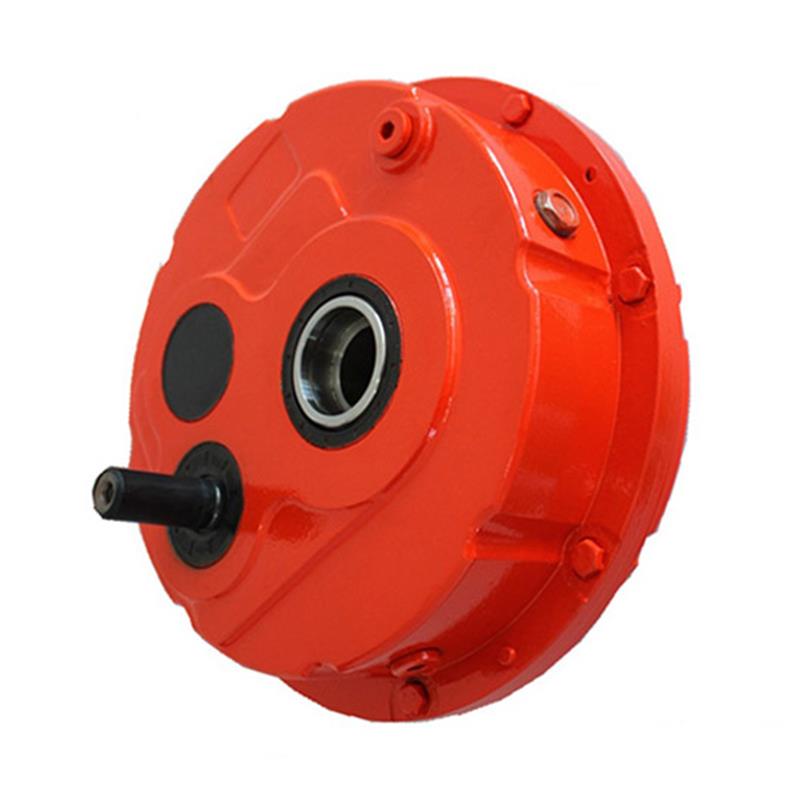

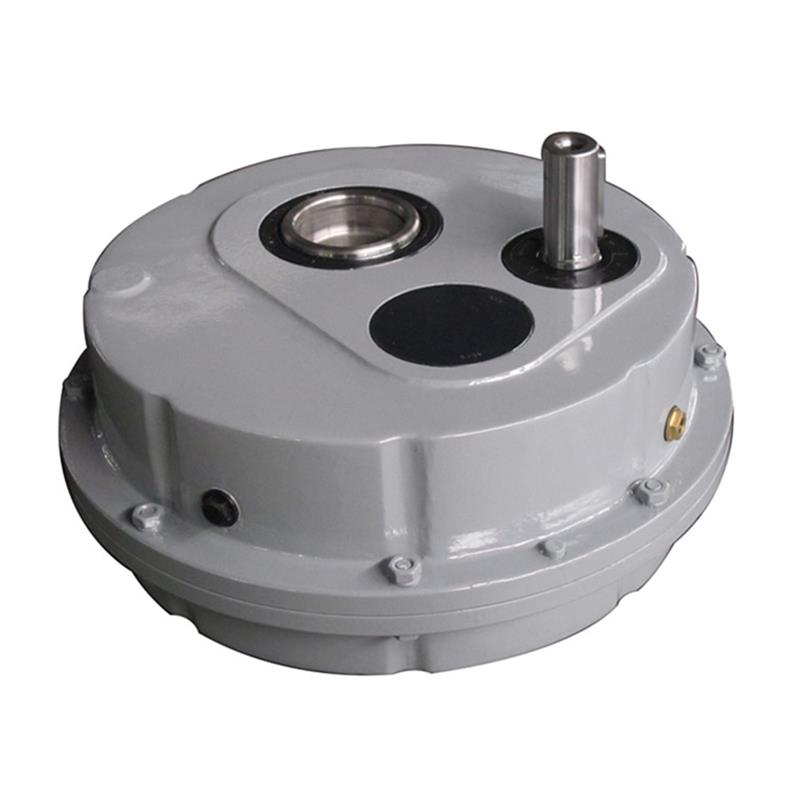

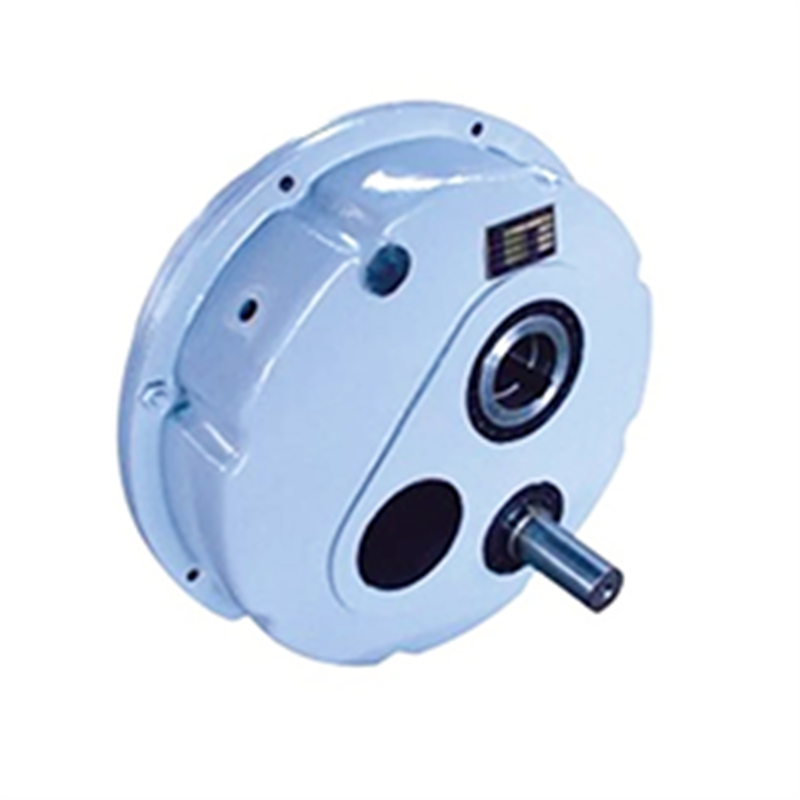

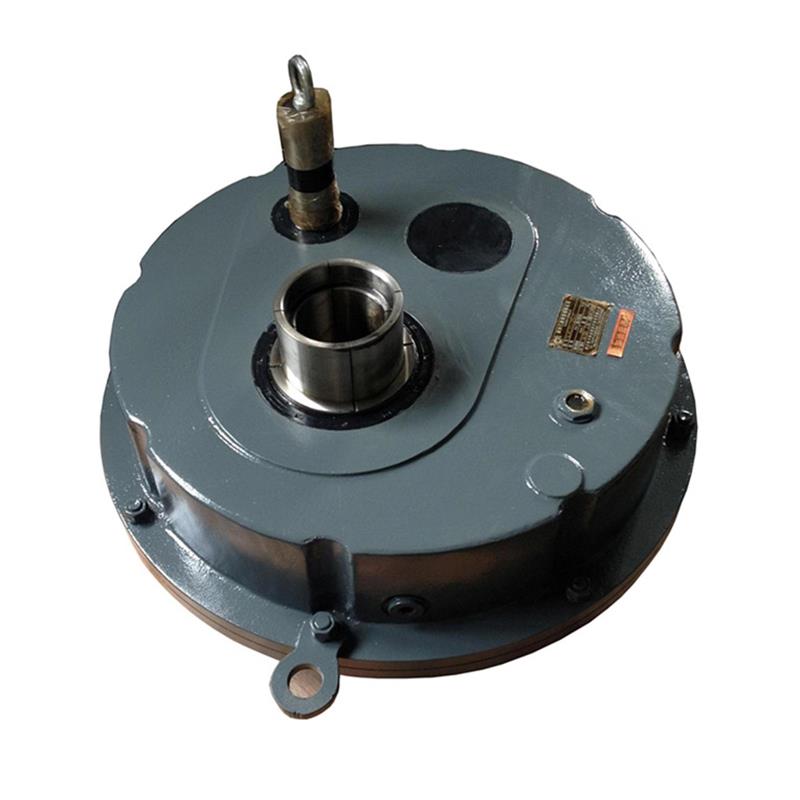

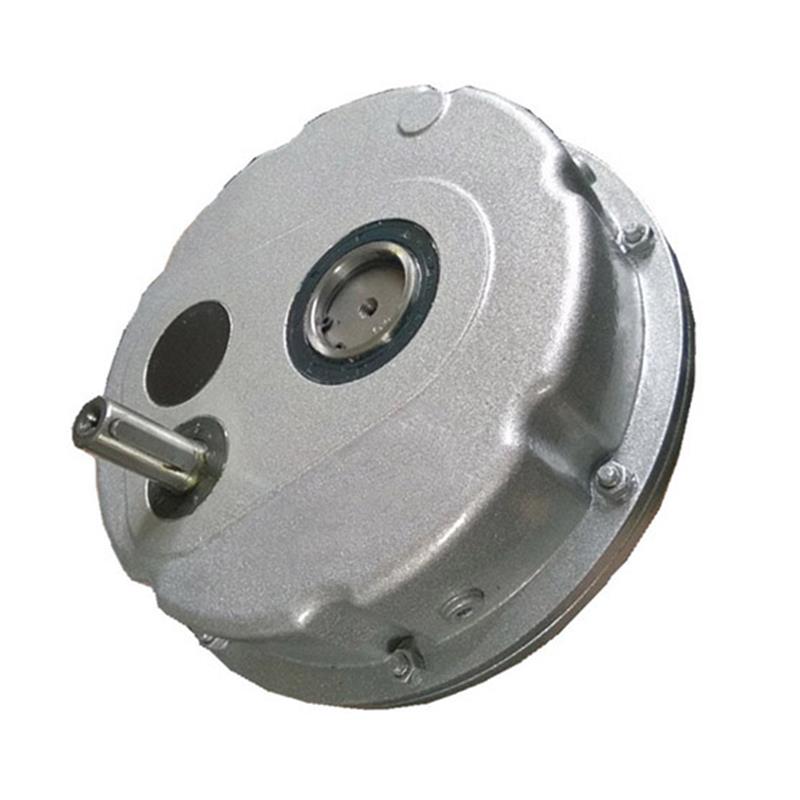

Model:SLXG Hanging Reducer
Size: SLXG30,35,40,45,50,60,70,80,100,125
Characteristics:1)Low-carbon alloyed steel cementation processing completely
High Precision of the gear and gear shaft
Small volume, large torque
Material:
Housing: Spheroidal graphite / HT200
Input oil seal: SKF Output oil seal: NAK/KSK
Input bearing: C&U Output bearing: LYC
Oil: the Great Wall 220
output shaft:24...27 HRC (45#)

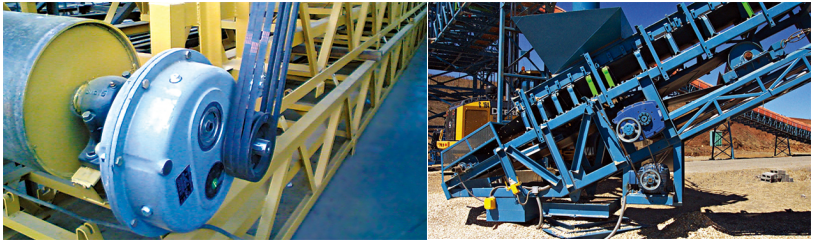

Application: Metallurgical Industry, Mining Industry, Chemical Industry, Lifting, Transportation, Textile Industry.
Belt pulley connection; Drive transmission
Maintenance:
Please change the oil per 300 hours of operation and flush the gear unit with suitable detergents
Don’t mix the mineral oil and synthetic oil.
Please check the oil level in regular timeand change oil according to the following table:
Oil temperature [℃] |
Oil change interval [h] |
|
Mineral oil |
Synthetic oil |
|
<65 |
8000 |
25000 |
65-80 |
4000 |
15000 |
80-95 |
2000 |
12500 |
Storage:
Don't be exposed to extreme weather outside
Don’t put it on the ground without cardboard, wood or other protective materials.
Please apply anti-rust oil for storage.
